The documentation of a kit consists of the following (examples from the
MJ class Ib kit):
|
|
Assembly instructions:
|
A step by step description of the assembly
|
|
Bill of Material:
|
List of all materials used
|
|

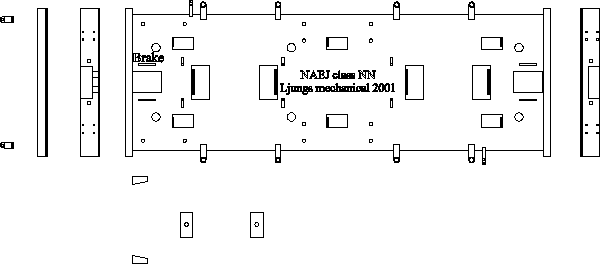

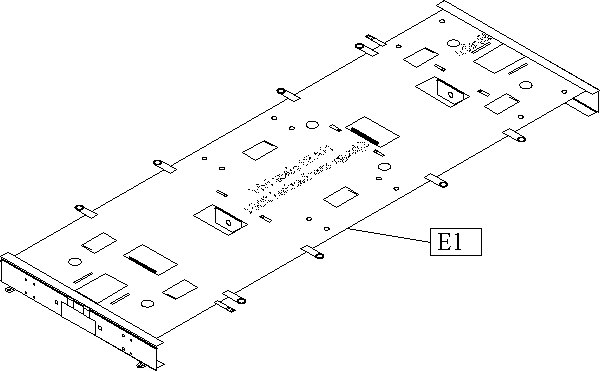

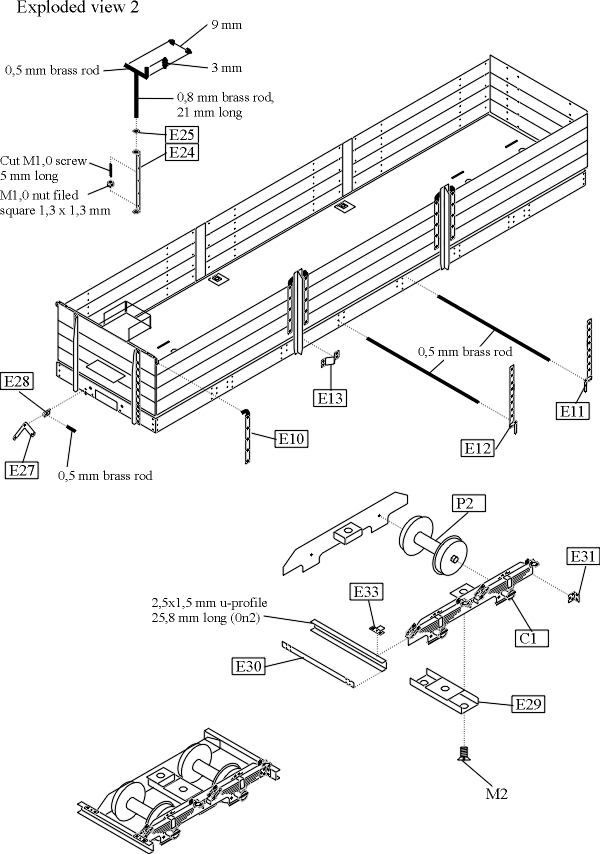

Exploded views:
|
If you intend to share your work with others you need to compile some building instruction. A very clear visualisation is an exploded view. It can be made fairly easy using some macros in Coreldraw.
|
|
The macros you need to make an isometric exploded view of the flat parts are: Floor, side and end. Cast and bought parts must be sketch by hand.
|
|
|
|
|
|
|
|
|
|
|
|
|
|

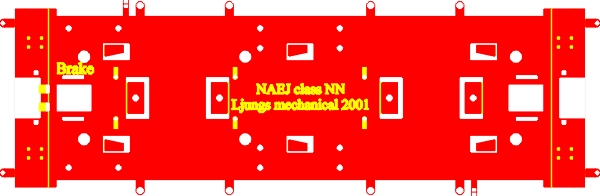

Etch identification:
|
To identify the parts on the etched sheet, basically a print out of the etch file including identity numbers according to the Bill of Material
|
|
Prototype information:
|
About the prototype, historical information, pictures, drawings etc
|
|
|
